Parts and Accessories For Geberit Duofix Installation Systems
Are you facing a special installation challenge? The tables below will help you find just the right installation accessories to get the job done. Here you can also find replacement parts for our Duofix in-wall system for toilets, urinals, bidets, and more.
Click any category title or drop-down arrow to get started.
Accessories and Waste Fittings
Frame Installation Accessories
| Part No. | Description | Spec Sheet | Installation Manual | List Price (USD) |
|---|---|---|---|---|
| 111.013.00.1 | Frame to wall anchoring for 5.125"-7.875" (13-20cm) thick unfinished pre-wall For use with Geberit Duofix Carrier 111.798 | PDF (755 KB) | PDF (2.0 MB) | $33.00 |
| 111.064.00.1 | Frame to wall anchoring for use where foot installations into floor are not allowed For 5.125"-9.5" (13-24cm) thick unfinished pre-wall For use with Geberit Duofix Carriers 111.255, 111.335, 111.434, 111.490, 111.520, 111.524, 111.625, 111.728 | PDF (55 KB) | $92.00 | |
| 111.815.00.1 | Frame to wall anchoring for 5.125"-7.875" (13-20cm) thick unfinished pre-wall For use with Geberit Duofix Carriers 111.255, 111.335, 111.434, 111.490, 111.520, 111.524, 111.625 | PDF (755 KB) | PDF (2.2 MB) | $48.00 |
| 111.835.00.1 | Frame to wall anchoring for 5.125"-7.875" (13-20cm) thick unfinished pre-wall corner installations For use with Geberit Duofix Carriers 111.255, 111.335, 111.434, 111.490, 111.520, 111.524, 111.625, 111.728 | PDF (755 KB) | PDF (323 KB) | $48.00 |
| 111.847.00.1 | Support brackets for wall-hung toilets with small contact surface (thin profiles) For use with Geberit Duofix Carriers 111.255, 111.335 | PDF (755 KB) | $67.00 | |
| 111.863.00.1 | Fire protection set for Sigma concealed dual-flush tanks, 90 min. Fire resistance to DIN EN 1364-1:1999-10 For use with Geberit Duofix Carrier 111.335 | PDF (755 KB) | PDF (663 KB) | $728.00 |
| 111.868.00.1 | Fastening set for sinks with 14.9"-22.8" (38-58cm) mounting centers For use with Geberit Duofix Carriers 111.434, 111.490 | PDF (755 KB) | $159.00 | |
| 111.869.00.1 | Frame to stud fastening set for extended stud spacing from 19.75"-25.56" (50-65cm) For use with Geberit Duofix Carriers 111.255, 111.335, 111.434, 111.490, 111.520, 111.524, 111.625 | $48.00 | ||
| 111.887.00.1 | Frame to wall anchoring extensions for 7.875"-15.75" (20-40cm) thick unfinished pre-wall For use with Geberit Duofix Carriers 111.255, 111.335, 111.434, 111.490, 111.520, 111.524, 111.625, 111.728 | PDF (755 KB) | $21.00 | |
| 242.042.00.1 | Crossbar for inlet, 1/2" thread For use with Geberit Duofix Carrier 111.625 | PDF (755 KB) | $151.00 | |
| 242.309.00.1 | For retrofitting already installed Geberit Duofix urinal elements from inlet 32 mm to R1/2" thread For use with Geberit Duofix Carrier 111.625 | PDF (755 KB) | $151.00 | |
| 243.168.00.1 | Rough-in set for surface-even mounting of flush and cover plates Required for use with Sigma60 and surface-even cover plates | $22.00 | ||
| 465.034.00.2 | Elbow supply fitting set, gun metal For use with Geberit Duofix Carriers 111.434, 111.490, 111.520, 111.524 | PDF (755 KB) | $52.00 |
Bowl Connection and Bidet Seat Accessories
| Part No. | Description | Spec Sheet | Installation Manual | List Price (USD) |
|---|---|---|---|---|
| 152.404.11.1 | Connector set with mounting hardware (bowl installation kit) HDPE waste fitting Alpine White cover caps For use with Geberit Duofix Carriers 111.255, 111.335, 111.728 | PDF (655 KB) | $62.00 | |
| 156.050.00.1 | Acoustic insulation set for wall-hung toilets and bidets For use with Geberit Duofix Carriers 111.255, 111.335, 111.520, 111.524, 111.728 | PDF (655 KB) | $26.00 | |
| 217.713.11.1 | Cover caps with leveling washer Plastic - Alpine White finish For use with Geberit Duofix Carriers 111.255, 111.335, 111.434, 111.490, 111.520, 111.524, 111.728 | PDF (655 KB) | $13.00 | |
| 405.116.00.1 | HDPE connection set with 1" (2.5cm) offset and mounting hardware (bowl installation kit) With socket for Ø3.50" (Ø90mm) push fit piping and Ø55mm supply inlet Matte Chrome cover caps For use with Geberit Duofix Carriers 111.255, 111.335, 111.728 | PDF (655 KB) | PDF (415 KB) | $329.00 |
| 249.801.00.1 | Water supply hose for bidet seat For adding bidet seat to an installed carrier For use with Geberit Duofix Carriers 111.012, 111.255, 111.355, 111.728 | PDF (654 KB) | PDF (5.4 MB) | $161.00 |
| 240.839.00.1 | Water supply hose for bidet seat For adding bidet seat to an installed carrier For complete installation, order with 249.801.00.1 For use with Geberit Duofix Carriers 111.012, 111.255 | PDF (654 KB) | $90.00 | |
| 243.173.00.1 | Water supply hose for bidet seat For adding bidet seat to an installed carrier For use with Geberit Duofix Carrier 111.798 For complete installation, must order with 249.801.00.1 | PDF (654 KB) | $67.00 |
Waste Fittings
| Part No. | Description | Spec Sheet | Installation Manual | List Price (USD) |
|---|---|---|---|---|
| 366.887.16.1 | HDPE straight connector with socket for Ø3.50" (Ø90mm) push fit piping and Ø3.50" (Ø90mm) outlet x 12" (31cm) long For use with Geberit Duofix Carriers for Wall-hung Toilets | PDF (967 KB) | $50.00 | |
| 366.913.16.1 | HDPE connector with offset for left-hand horizontal drain connections (as viewed from sitting position) 1 x 90° bend with socket for Ø3.50" (Ø90mm) push fit piping, with 45° offset and Ø3.50" (Ø90mm) outlet for 5.5" (13.97cm) minimum walls only For use with Geberit Duofix Carriers for Wall-hung Toilets | PDF (967 KB) | $103.00 | |
| 366.914.16.1 | HDPE connector with offset for right-hand horizontal drain connections (as viewed from sitting position) 1 x 90° bend with socket for Ø3.50" (Ø90mm) push fit piping, with 45° offset and Ø3.50" (Ø90mm) outlet for 5.5" (13.97cm) minimum walls only For use with Geberit Duofix Carriers for Wall-hung Toilets | PDF (967 KB) | $103.00 | |
| 367.072.18.1 | Cast iron outlet bend 1 x 90° bend with socket for Ø3.50" (Ø90mm) push fit piping and 3" CIP outlet 1 x 2" NPTF heel outlet For use with Geberit Duofix Carriers for Wall-hung Toilets Note: Use in place of 367.071.18.1 | PDF (967 KB) | $312.00 | |
| 367.485.16.1 | HDPE "back-to-back" connector for horizontal drain connections 2 x 90° bends with sockets for Ø3.50" (Ø90mm) push fit piping, with 45° offset and expansion to Ø4.375" (Ø110mm) outlet for 10.75" (27.31cm) minimum walls only For use with Geberit Duofix Carriers for Wall-hung Toilets | PDF (967 KB) | $223.00 | |
| 367.923.16.1 | HDPE "back-to-back" connector for vertical drain connections 2 x 90° bends with sockets for Ø3.50" (Ø90mm) push fit piping and expansion to Ø4.375" (Ø110mm) outlet for 10.75" (27.31cm) minimum walls only For use with Geberit Duofix Carriers for Wall-hung Toilets | PDF (967 KB) | $216.00 | |
| 152.647.00.1 | PP connector set with bend for floor-mount toilets 1 x 90° bend with socket for Ø4.375" (Ø110mm) push fit piping for Ø3.82"-4.21" (Ø97-107mm) male connection and expansion to Ø4.375" (Ø110mm) outlet Includes mounting hardware For use with floor-mount, back outlet toilet | PDF (967 KB) | PDF (27 KB) | $159.00 |
| 366.061.16.1 | HDPE outlet bend, 1 x 90° bend with socket for Ø3.50" (Ø90mm) push fit piping and Ø3.50" (Ø90mm) outlet x 12" (31cm) long For use with floor-mount, back outlet toilet | PDF (967 KB) | $33.00 | |
| 152.950.11.1 | PE syphon trap with horizonal outlet and seal Ø1.96" (Ø50mm) outlet For use with urinal carrier 111.625 | PDF (655 KB) | $49.00 | |
| 152.951.11.1 | PE syphon trap with vertical outlet and seal Ø1.97" (Ø50mm) outlet For use with urinal carrier 111.625 | PDF (655 KB) | $49.00 |
Repair Parts
Toilet Systems
| Part No. | Description | List Price (USD) |
|---|---|---|
| 119.668.00.1 | Seal for supply inlet tube, EPDM For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $5.00 |
| 152.404.46.1 | Connector set with mounting hardware (bowl installation kit), HDPE Matte chrome cover caps For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $62.00 |
| 152.424.00.1 | Seal for toilet outlet connector, EPDM For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $7.00 |
| 240.172.00.1 | Plastic mud guard protection housing, comes standard For use with Geberit Kappa concealed tanks 2x6 | $33.00 |
| 240.269.00.1 | Angle stop valve to concealed tank (blue handle) For use with Geberit Sigma and Kappa concealed tanks 2x6 | $29.00 |

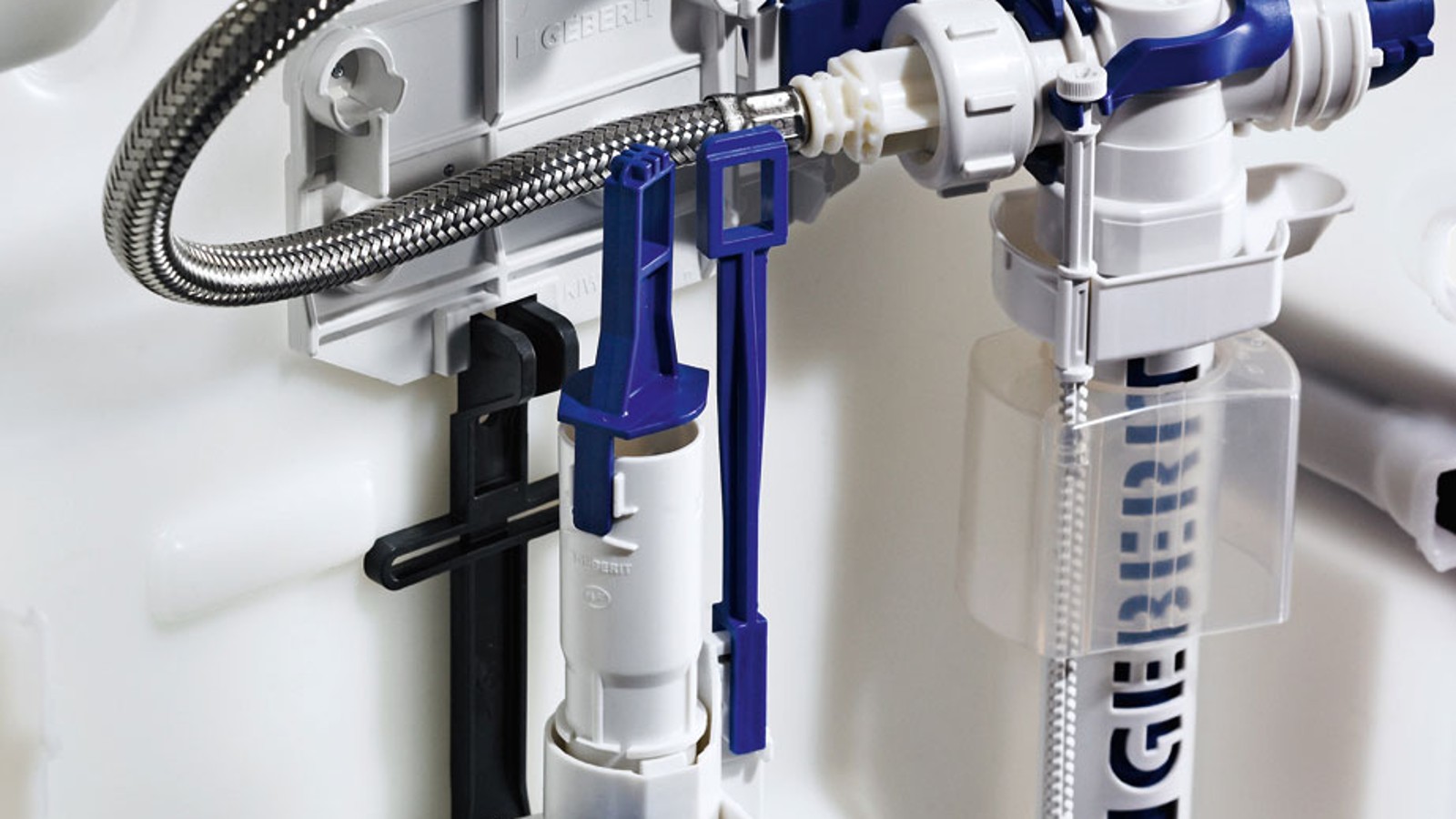

| 240.638.00.1 | Dual flush valve For use with Geberit Kappa concealed tanks 2x6 | $36.00 |
| 240.771.00.1 | Seal kit for filling valve Type 380 For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $15.00 |
| 240.922.00.1 | Seal kit for braided hose, EPDM O-Ring For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $7.00 |
| 241.167.00.1 | Yoke set for flush valves For use with Geberit Sigma concealed tanks 2x6 and 2x4 | $15.00 |
| 241.290.00.1 | Dual-flush valve complete with valve seat basket For use with Geberit Sigma concealed tanks 2x4 | $45.00 |
| 241.291.00.1 | Flat gasket for flush valve For use with Geberit Sigma concealed tanks 2x4 | $5.00 |
| 241.293.00.1 | U-cup seal for valve basket For use with Geberit Sigma concealed tanks 2x4 | $6.00 |
| 241.469.00.1 | Filling valve Type 380 For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $40.00 |
| 241.826.00.1 | Mud guard protection housing, plastic For use with Geberit Sigma concealed tanks 2x6 and 2x4 | $18.00 |
| 241.868.00.1 | U-cup seal for valve basket For use with Geberit Sigma and Kappa concealed tanks 2x6 | $5.00 |
| 242.269.00.1 | Valve seat basket and noise bushing for flush valve For use with Geberit Sigma concealed tanks 2x4 | $22.00 |
| 242.414.00.1 | Stop valve to concealed tank (blue handle) For use with Geberit Sigma concealed tanks 2x4 | $24.00 |
| 362.771.00.1 | Seal for concealed flush pipe, EPDM For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $5.00 |
| 366.061.16.1 | HDPE waste fitting outlet bend 1 x 90° bend with socket for Ø3.50” (Ø90 mm) push fitpiping and Ø3.50” (Ø90 mm) outlet For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $33.00 |
| 387.282.00.1 | Seal for outlet bends, EPDM For use with Geberit Sigma and Kappa concealed tanks 2x6 and 2x4 | $7.00 |
| 816.418.00.1 | Flat gasket for flush valve For use with Geberit Sigma and Kappa concealed tanks 2x6 Set of 10 | $5.00 |
Urinal Systems
| Part No. | Description | List Price (USD) |
|---|---|---|
| 152.693.00.1 | Seal for connector, EPDM Ø1.97” (Ø50 mm) outlet | $6.00 |
| 152.950.11.1 | Syphonic trap with horizontal outlet and seal, PE Ø1.97” (Ø50 mm) outlet | $49.00 |
| 240.315.00.1 | Waste fitting outlet bend, PE; 1 x 90° bend Ø2.48” / Ø1.97” (Ø63 / Ø50 mm) | $33.00 |
| 242.516.00.1 | Outlet pipe Ø1.97” (Ø50 mm) Terrain article no. 225.2G | $48.00 |
| 362.790.00.1 | Round cord ring, EPDM | $5.00 |
Bidet and Lavatory Systems
| Part No. | Description | List Price (USD) |
|---|---|---|
| 152.682.00.1 | Outlet seal, EPDM, push on For Ø1.97” (Ø50 mm) tube For use with Geberit Duofix bidet and lavatory carriers | $5.00 |
Links

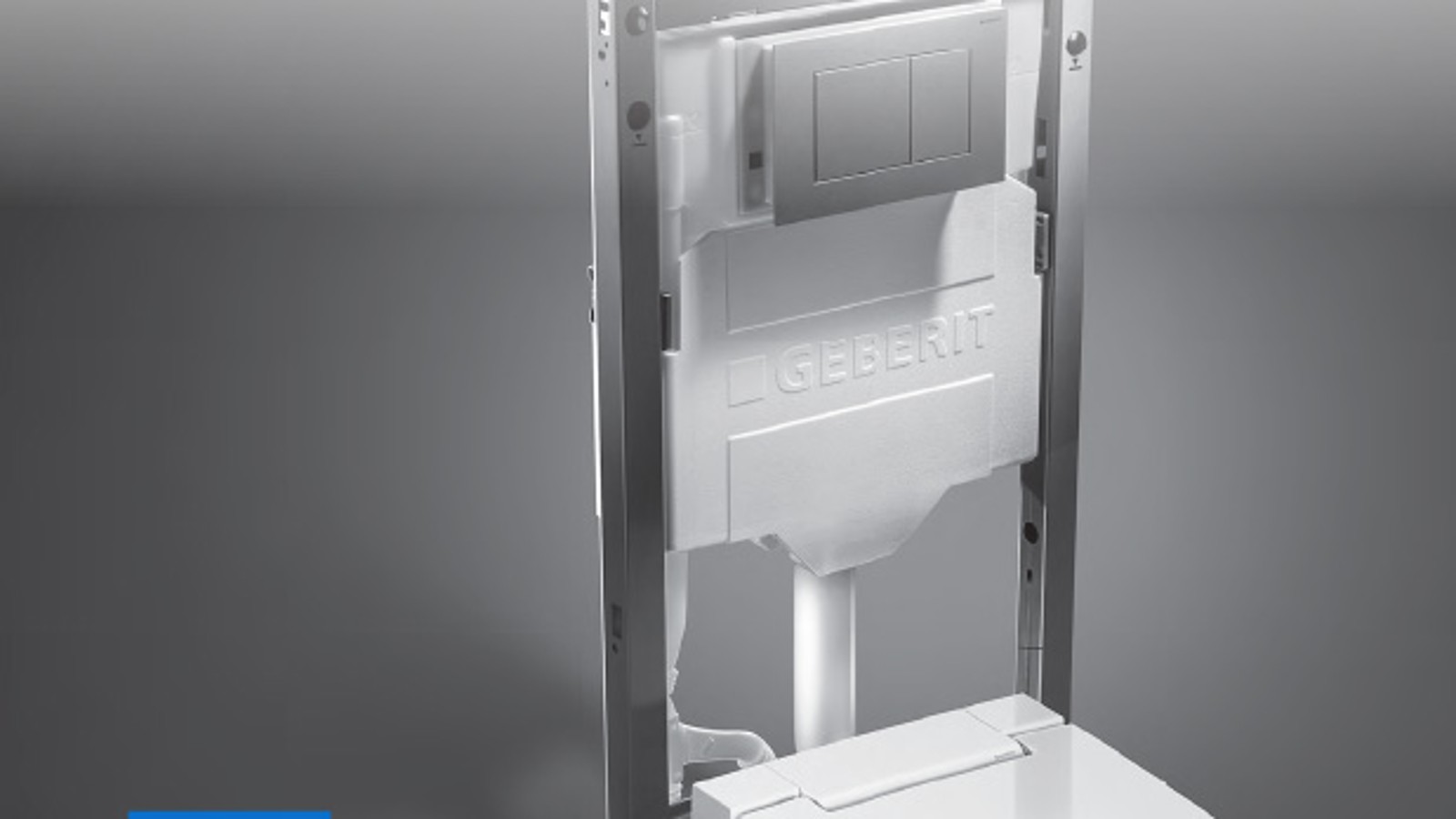

Complete line of products and parts: Product and Parts catalog
Compatible wall-hung bathroom fixtures: Clean Design (5.8 MB) brochure
